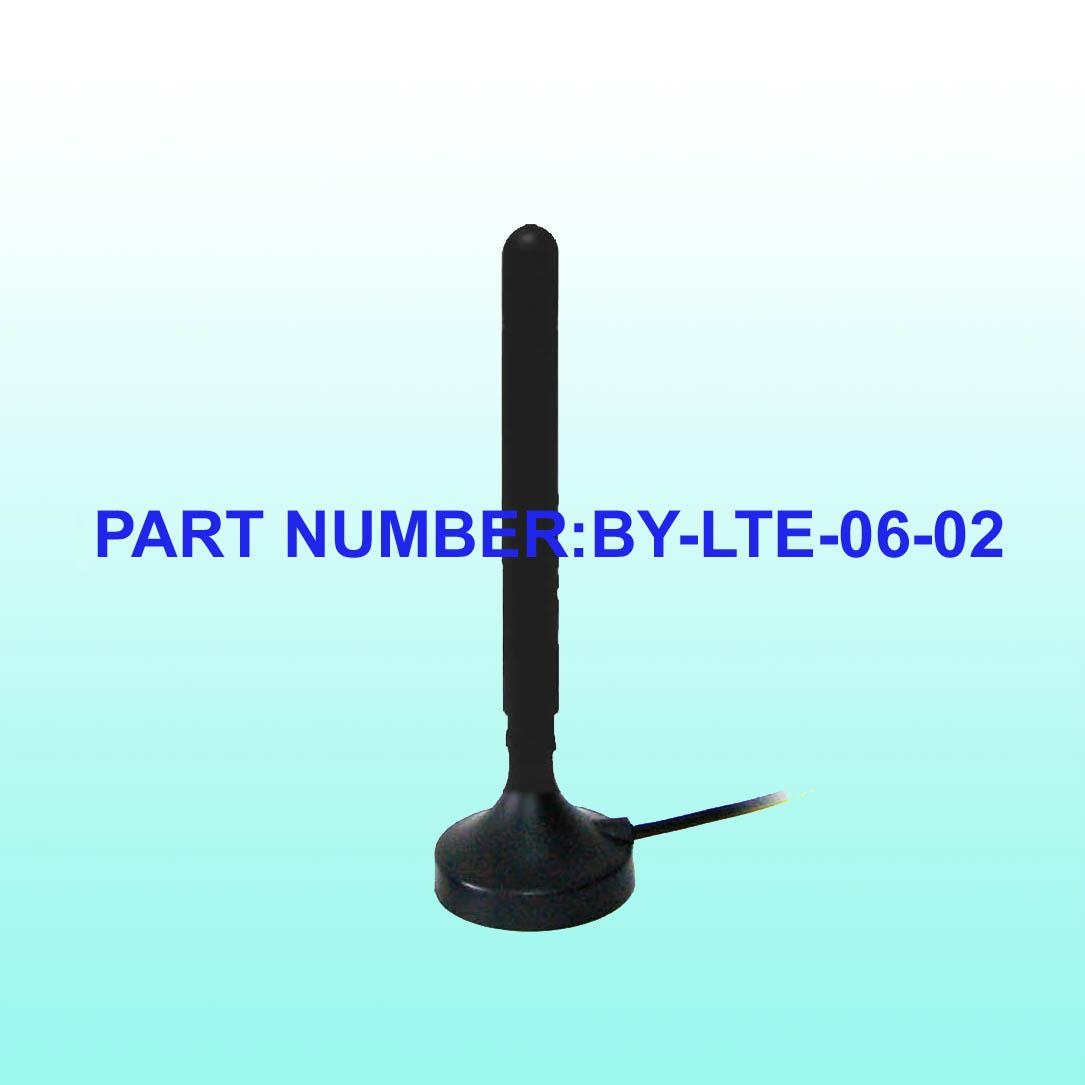

Magnetic Base Lte 4G Antenna with SMA Connector Rg174 Cable

Model No.︰BY-LTE-06-02
Brand Name︰beyondoor
Country of Origin︰China
Share on:

 Total 40 Related Items
Prev2425262728Next

Product Description

( I ) Product Overview

FrequencyMHz):698-960/1710-2170/2500-2700
VSWR ≤2
Gain
dBi):3
Max Input power
W):60
Input Impedance
Ω):50
Polarization
Vertical
Size
mm):Φ45(Base)×116(Height)
Cable Length
m):2,3,5 etc.
Cable Type
RG174
Connector
SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting
Magnetic
Housing
Black
Storage Temperature
-45to+75
Operating Temperature-45to+75

---------------------------------------------------------------------------------------------

JIAXING BEYONDOOR ELECTRONICS CO.,LTD
Address: #101, Weiyi West Road, Dongzha  Economic Zone ,Jiaxing 314000,Zhejiang,China
Website:www.beyondoor.com
E-MAIL: frank@beyondoor.com
MSN:firstgps@hotmail.com
SKYPE NAME:beyondoorgps

Product Image
