Long Term Evolution (LTE) is a mobile network technology that is being deployed by mobile operators on both the GSM and the CDMA technology paths.  Depending on the spectrum available, live LTE networks can deliver very fast data speeds of up to 100Mbps in the downlink and 50Mbps in the uplink.

LTE/4G antennas' frequency covers 698-960 MHz and 1710-2700 MHz. For this LTE/4G Antennas need to be reliable and efficient in all conditions. For these types of critical communication, Beyondoor LTE/4G Antennas offers a wide range of solutions.

 Application:

  • Machine-to-Machine (M2M)
  • Utilities & Energy Management
  • Mining & Agriculture
  • Warehouse & Distribution
  • Transportation

(I)4G/LTE Rubber antenna

A highly optimal design for direct mounting, this STUB avoids a Coaxial cable by mounting the antenna directly to the SMA connector.This results in low losses due to the reduced interconnects and forms a tidy and convenient antenna solution.

This antenna features a Straight SMA,FME,N,TNC etc connectors, allowing them to be used vertically, at a right angle or rotation. It is suitable as a replacement RF antenna for many access points and radios that are equipped with SMA FME,N,TNC etc connectors such as mobile, wireless pay phone, fixed commercial phone, PCMCIA card, navigation device, vehicle wireless device, etc..

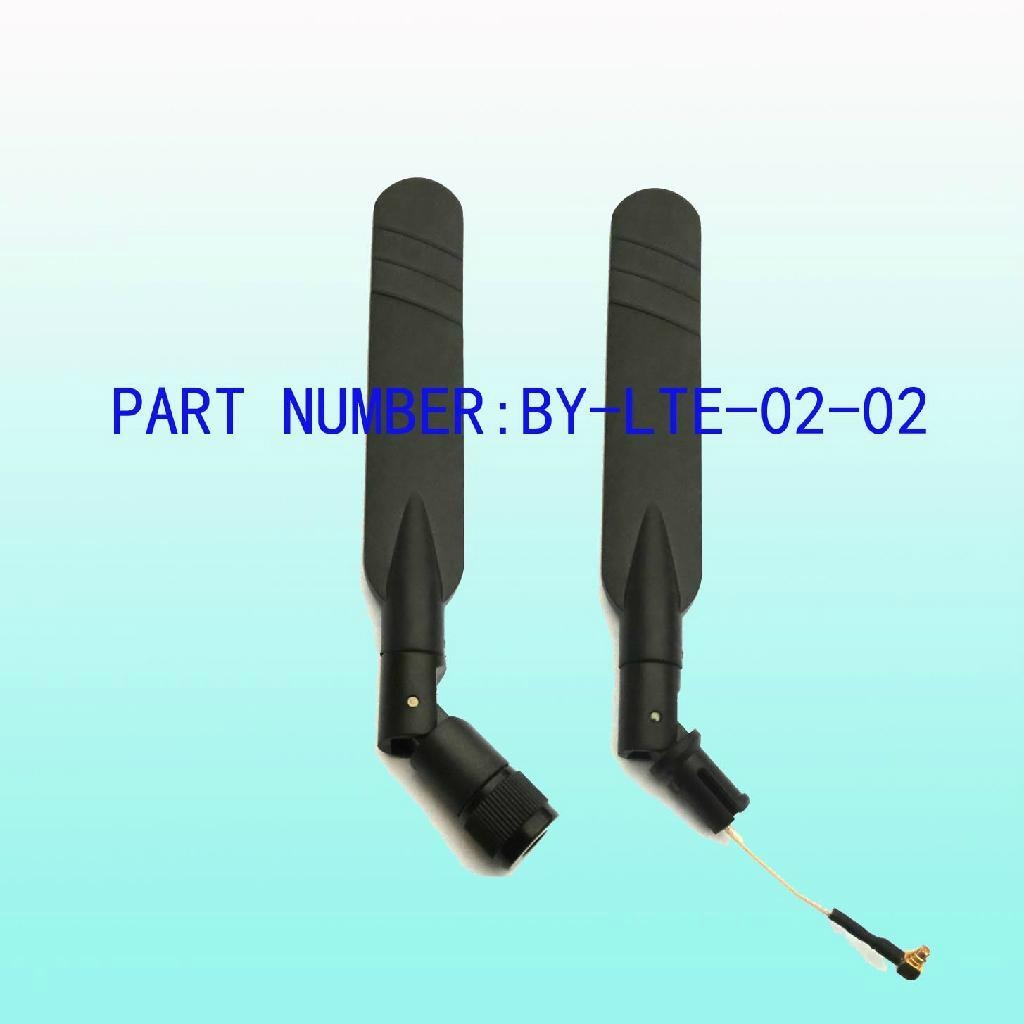

Model:BY-LTE-02-02

Rubber duck antenna

Model:BY-LTE-03-03

Lte  rotation antenna

Model:BY-LTEL-3

Lte  rotation antenna

(II)4G/LTE Antenna with cable

Beyondoor LTE/4G antenna mounting is magnetic,adhesive or screw mount. And  cable length can be customed from 10cm to 6meters or more longer.SMA,SMB,SMC,BNC,TNC,MCX,MMCX,FAKRA etc.connectors are selected.

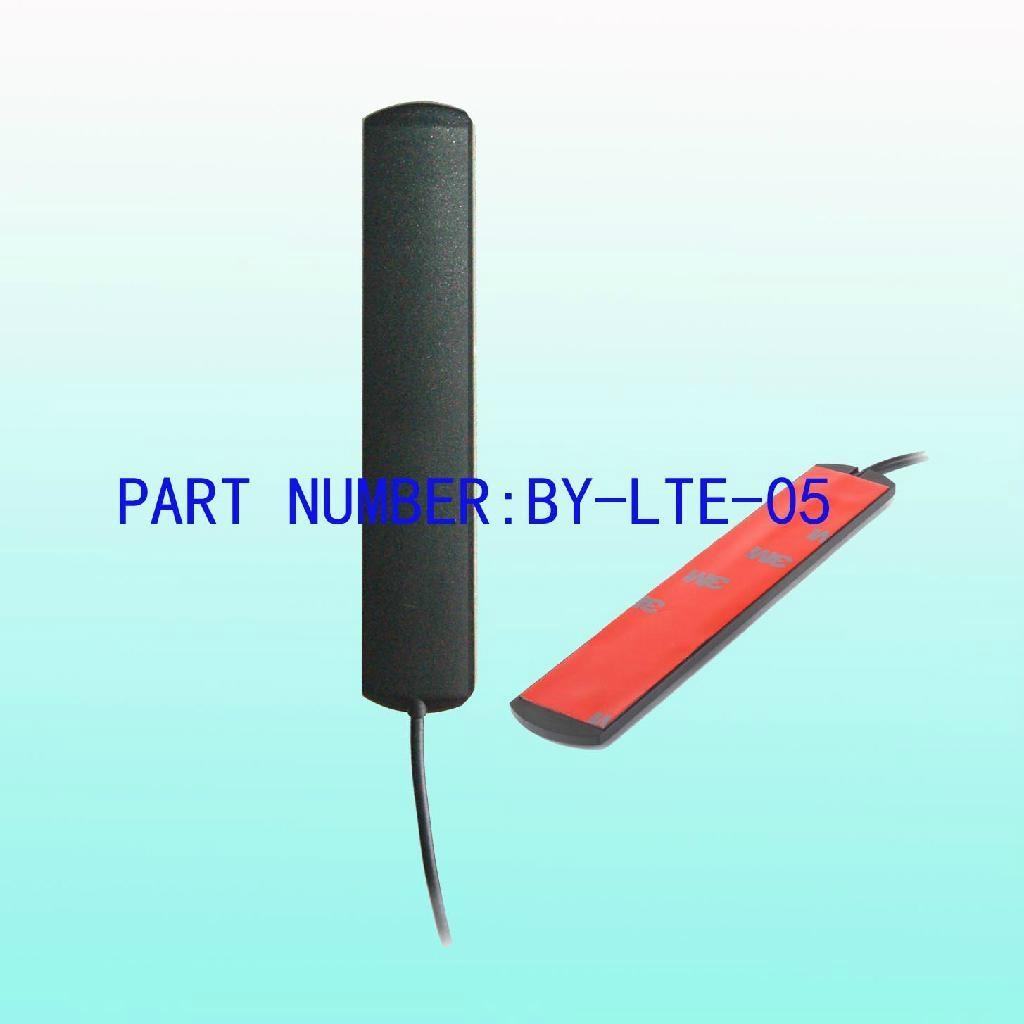

        Model:BY-LTE-05

Lte patch antenna

       Model:BY-LTE-06

 Lte whip antenna

      Model:BY-LTE-06-L

 Lte whip antenna

    Model:BY-LTE-06-02

45mm base antenna

    Model:BY-LTE-06-03-L

Lte antenna with wall mout

     Model:BY-LTE-LTE-09

GSM patch antenna

      Model:BY-LTE-15

Hanging antenna

     Model:BY-LTE-17

Fiberglass antenna

Also many customers buy the following products:

     Model:BY-GPS-252

 GPS Dielectric antenna

     Model:BY-GSM-Dielec

GSM Dielectric antenna

      Model:BY-LTE-18

Lte antenna

      Model:BY-LTE-16

Lte antenna

      Model:BY-2400-03

Wifi external antenna

      Model:BY-GPS-03

Magnetic GPS antenna

           Model:BY-RF

Cable assemble

         Model:BY-SMA

  SMA RA female for PCB

Why choose us?

  1. Professional manufacturer of  antennasRohs,Reach and CE compliance. More than 20 years R&D development experience in antennas industry.
  2. All products have been tested before put on market. They must pass five test sessions and FAQ samplings inspection. The first pass yield is 99%.
  3. Professional manufacturer directly supply you,so price is competitive and lead-time is only 1-2 weeks.For normal model,samples' lead-time is only 2-3days.Beyondoor has very rapid and good service.
  4. Beyondoor  antennas feature high gain, low loss and strong capability of receiving signals.
  5. Protection grade is IP67 (ingress protection rating 67), which means our antennas are water proof.
  6. The antenna is with corrosion resistance. It has passed 48 hours salt spray test.
  7. Excellent performance, we can offer you our test results upon request.
  8. If there are any quality problems of our  antenna, you can get replacement or refund within one year and lifelong maintenance after buying.
